Samson Wu
Game Overview
Project Dreamscape is an action game that blends fast-paced combat with dreamlike environments.
My Role
As Programming Producer, I led the technical direction of core systems architecture and ensured scalable, designer-friendly tools were in place to support gameplay and content creation.
Entity System & Character Controller
Goal
I wanted to build a flexible system to manage players, enemies, and allies under a single framework.
Solution
I setup a powerful Entity base class to serve as the foundation for all character-like objects in the game. To manage behavior, each entity maintained its own internal state machine. I used C# Action events as interaction hooks within the Entity class. This allowed dynamic behavior to be added or extended without modifying the core entity logic. This Open-Closed approach created a modular and decoupled workflow, making the system more flexible and easier to maintain.
One of the actions housed inside the Entity base class. I made sure to always write system documentation compatible with intellisense for these actions, making it clear for other developers.
The Evolution of Entity State Machine States
My goal was to create designer and editor friendly states but my original approach had many flaws.
Iteration 1: Pure C# State Classes
-
All variables lived in the massive Entity-inherited class, breaking encapsulation.
-
The inspector became very cluttered, making certain variables hard to find.
Problems:
To solve these problems, I had to move variables and methods to their individual states, utilizing the Single Responsibility Principle. I turned the states into Monobehaviours for serialization and editor collapsible components.
Iteration 2: Monobehaviour State Components
Problems:
-
Huge memory overhead for each state since every entity carried 5+ states that do not fully use the functionality of Monobehaviours.
-
Every derived entity prefab needed manually added required state components, including ones from the super class.
To address the Monobehaviour overhead, I reverted the states back to pure C# classes, but with serialization instead. This made designer and editor friendly collapsible dropdown config menus that looked very neat in the inspector.
Final Iteration: Serialized Pure C# States
Remaining Challenges:
-
Inheritance conflict: Serialized inherited states would show as duplicates in the inspector.
-
Needed a custom editor script to clean up the inspector.
Outcome
While there are still problems with my current implementation of Entity states, it does the job that it needs to for this project. I'm already happy that I was able to decouple state logic, balance memory, and improve editor usability while building a powerful and scalable entity framework.
Status Effect System
Goal
I needed a system that could apply and manage buffs, debuffs, and passive effects for both players and enemies. These effects needed to be modular, time-based, and optionally stackable.
Solution
I designed a modular component called EntityStatusEffector, which could be added to any entity. Status Effects were implemented as ScriptableObjects using a shared base class: StatusEffectSO. I also made two major subclasses for different timing behaviors, duration-based and tick-based. Each status effect inherited behavior through many lifecycle methods, giving me full control in a designer-friendly ScriptableObject format. This utilized the Strategy pattern, avoiding spaghetti code that would result from a large switch statement.
Limitations
Effects are stored by type, meaning each entity can only hold one instance of a given effect. This means that you can't reuse the same effect type, but with different configs, on one entity unless explicitly stacking and overriding.
Outcome

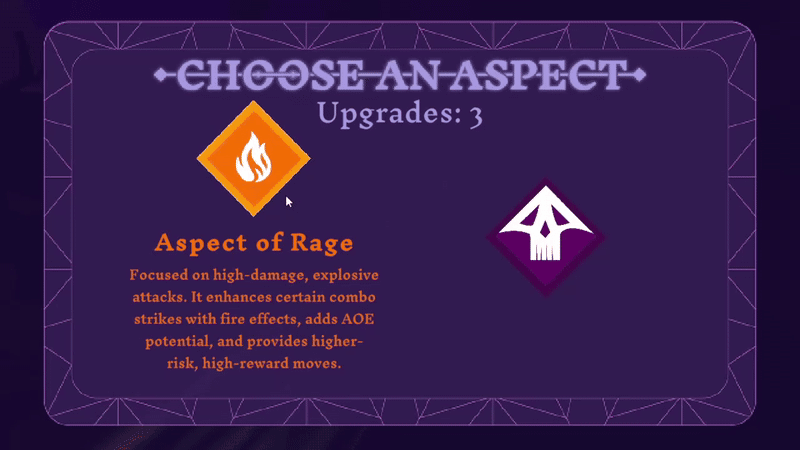

This system powered many unique passive abilities in the game, especially from our Aspects system. Effects could be added or removed dynamically during runtime. Designers could also easily tweak the configurations of these ScriptableObject status effects through the inspector.

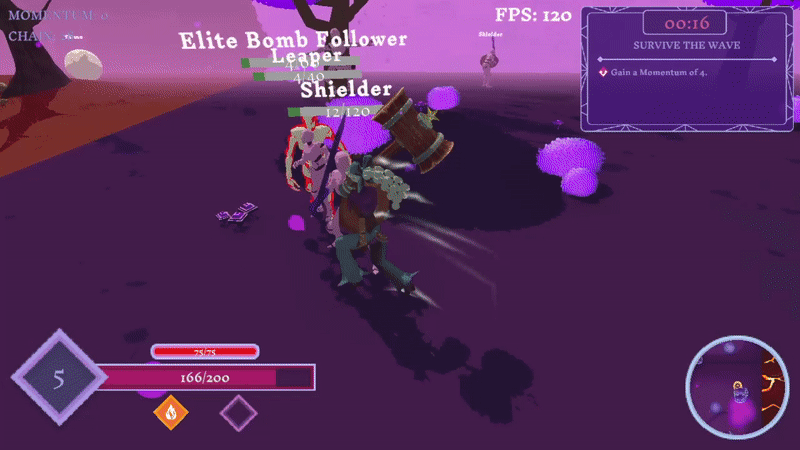

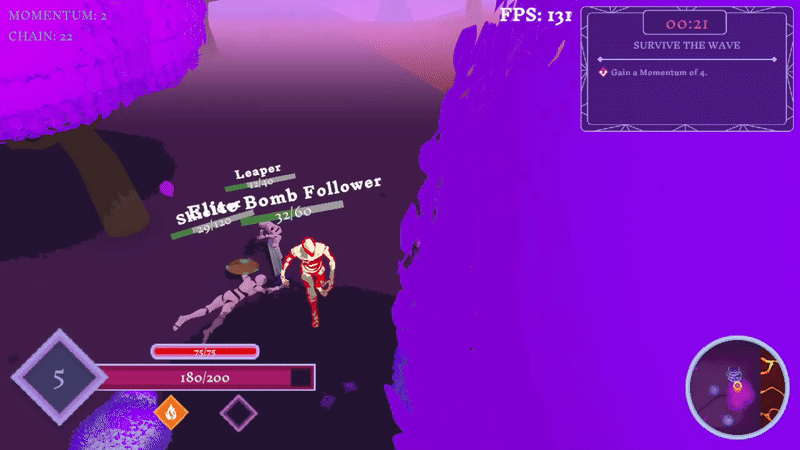

An example of the Bomb Elite status effect that is applied to elite enemies on spawn. Bomb elites explode after death as shown in the GIF. All Bomb Elite status effect settings are configurable in the editor.
World Event System
WIP
Combat & Combo System
WIP
